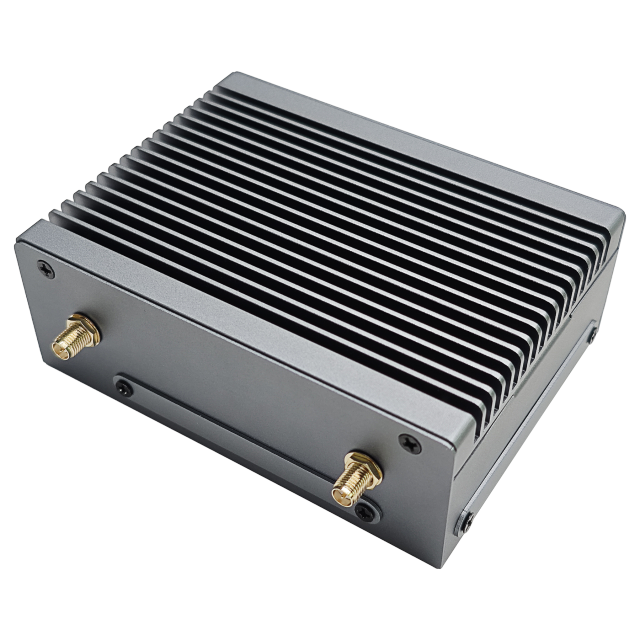

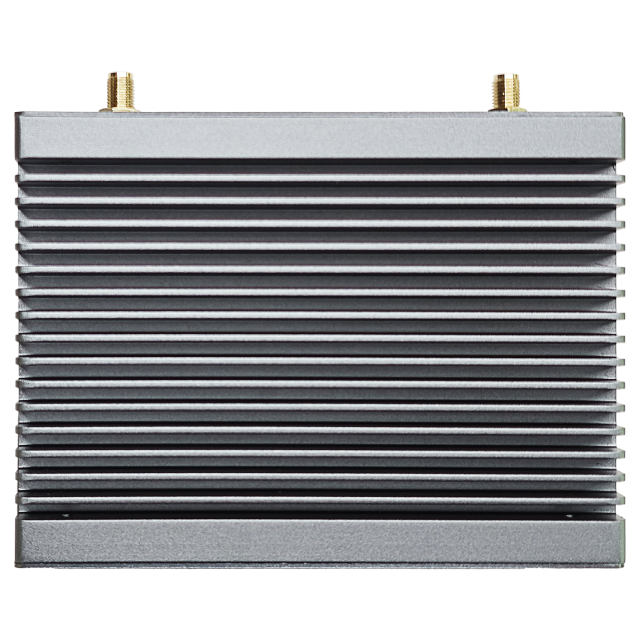

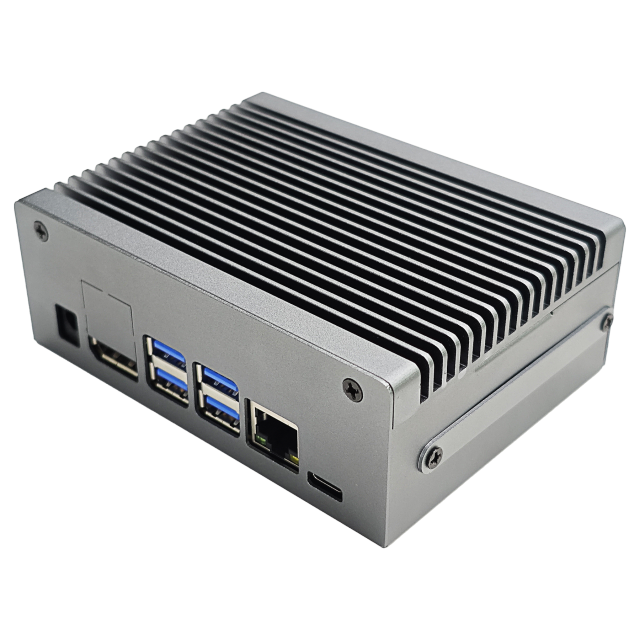

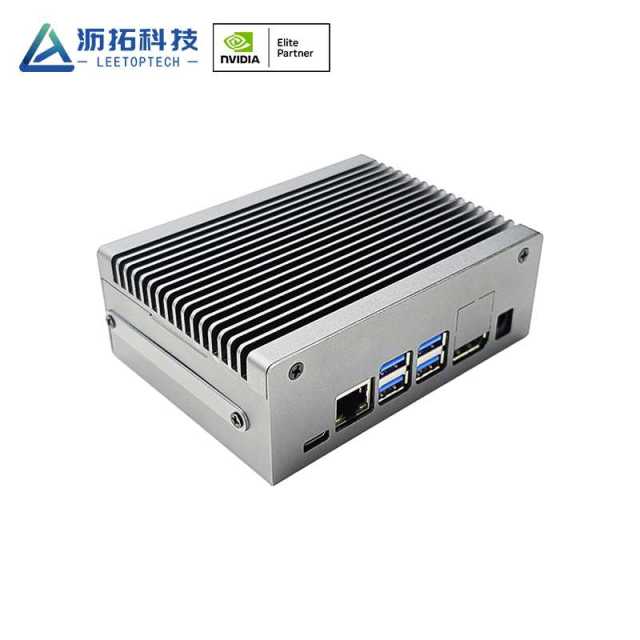

Leetop YL-X606B For Jetson orin nano/orin nx super version

Name: Leetop YL-X606B For Jetson orin nano/orin nx super version
Brand: leetop
Availability: InStock
Rating: 5 (1 reviews)

YL-X606B is an advanced embedded artificial intelligence computer developed based on NVlDlA Jetson Orin NANO/Orin
NX modules. The computer provides powerful computing power of up to 34/67/117/157 TOPs for many terminal devices.
Equipped with Orin NANO/Orin NX modules, YL-X606B can give full play to the advantages of NVlDlA's powerful Al software stack, SDK and software platform, becoming a high-performance, low-power embedded edge computing device while meeting industrial standard anti-vibration and anti-static requirements. This Jetson device is suitable for developing Al applications, autonomous driving, computer vision and other scenarios.

module:

Jetson Orin Nano 4G

Jetson Orin Nano 8G

Jetson Orin NX 8G

Jetson Orin NX 16G

Get The Latest Quote

SPECIFICATION

Processor module：

	Orin Nano 4GB	Orin Nano 8GB
Al Performance	34 TOPS	67 TOPS
GPU	512-core NVIDlA Ampere architecture GPU with 16 Tensor Cores	1024-core NVIDlAAmpere architecture GPU with 32 Tensor Cores
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Video Encode	1080p30 supported by 1-2 CPU cores
Video Decode	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x1080p30(H.265)
Memory	4GB 64-bit LPDDR5 51 GB/s	8GB 128-bit LPDDR5 68 GB/s
Storage	—— (Supports extemal NVMe)
CSl Camera	Up to 4 cameras (8 via virtual channels*** 8 lanes MlPl CSI-2 D-PHY 2.1 (up to 20Gbps)
PCIE*	1 x4 + 3 x1 (PCle Gen3, Root Port, & Endpoint)
Networking*	1x GbE
Power	7W-10W-25W	7W-15W-25W

	Orin NX 8GB	Orin NX 16GB
Al Performance	117 TOPS	157 TOPS
GPU	1024-core NVIDlAAmpere architecture GPU with 32 Tensor Cores
CPU	6-core NVIDlA Arm® Cortex A78AE v8.2 64-bit CPu 2MB L2 + 4MB L3	8-core NVlDlA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265） 6x1080p60(H.265） 12x1080p30(H.265）
Video Decode	1x 8K30 (H.265) 2x 4K60 (H.265） 4x 4K30 (H.265） 9x 1080p60(H.265) 18x 1080p30(H.265）
Memory	8GB 128-bit LPDDR5 102.4GB/s	16GB 128-bit LPDDR5 102.4GB/s
Storage	—— (Supports extemal NVMe)
CSl Camera	Up to 4 cameras (8 via virtual channels***) 8 lanes MIPl CS1-2 D-PHY 2.1 (up to 20Gbps)	2x MIPI CSI-2 22-pin Camera Connectors
PCIE*	1 x4 + 3 x1 (PCle Gen4, Root Port & Endpoint)
Networking*	1x GbE
Power	10W-15W-25W-40W	10W-15W-25W-40W

Specification:

Project	Specification
Module Compatibility	Jetson Orin Nano /Orin NX

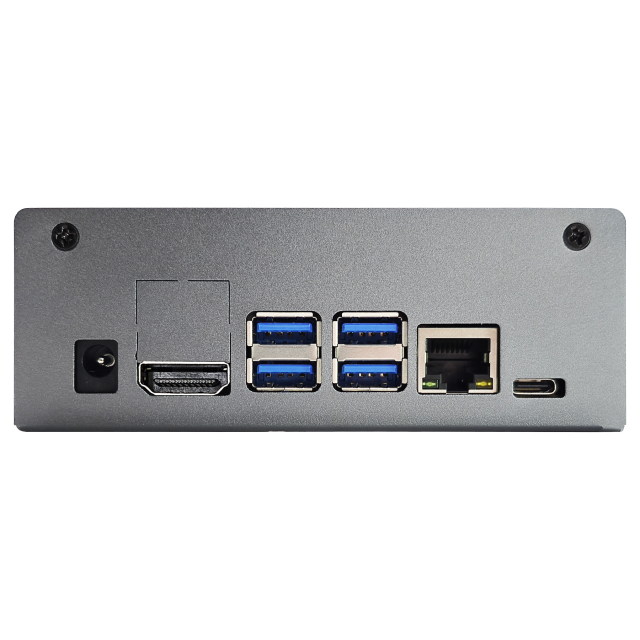

Display	1x HDMI
Ethernet	1x Gigabit Ethernet (10M/100M/1000M)
USB	4x USB 3.0 Type A(Integrated USB2.0) 1x USB2.0+3.0 TYPE C
Camera	CSl 2lane
Multifunctional port	2xI2C; 6xGPI0;2xSPI; 1xI2S; 1xUART
Button Header Pinout	1xSYS_RST; 1XRECOVERY; 1xPOWER;
RTC BATTARY connector	1x RTC
CAN	1xCAN;
DC	Power interface
Input Voltage	+9V ~ 20V DC Input @7A
Load capacity	Above 60W
Dimensions (LxWxH )	122x91x43.9(mm)
Operating Temperature	-25℃-65℃
Storage Temperature Humidity	-25℃-65℃ 10% -90% Non condensation environment
