| Orin Nano 4GB | Orin Nano 8GB | |
| Al Performance | 34 TOPS | 67 TOPS |
| GPU | 512-core NVIDlA Ampere architecture GPU with 16 Tensor Cores | 1024-core NVIDlAAmpere architecture GPU with 32 Tensor Cores |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|
| Video Encode | 1080p30 supported by 1-2 CPU cores | |
| Video Decode | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x1080p30(H.265) |
|
| Memory | 4GB 64-bit LPDDR5 51 GB/s |
8GB 128-bit LPDDR5 68 GB/s |
| Storage | —— (Supports extemal NVMe) |
|
| CSl Camera | Up to 4 cameras (8 via virtual channels*** 8 lanes MlPl CSI-2 D-PHY 2.1 (up to 20Gbps) |
|
| PCIE* | 1 x4 + 3 x1 (PCle Gen3, Root Port, & Endpoint) |
|
| Networking* | 1x GbE | |
| Power | 7W-10W-25W | 7W-15W-25W |
| Orin NX 8GB | Orin NX 16GB | |
| Al Performance | 117 TOPS | 157 TOPS |
| GPU | 1024-core NVIDlAAmpere architecture GPU with 32 Tensor Cores | |
| CPU | 6-core NVIDlA Arm® Cortex A78AE v8.2 64-bit CPu 2MB L2 + 4MB L3 |
8-core NVlDlA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| Video Encode | 1x 4K60 (H.265) 3x 4K30 (H.265） 6x1080p60(H.265） 12x1080p30(H.265） |
|
| Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265） 4x 4K30 (H.265） 9x 1080p60(H.265) 18x 1080p30(H.265） |
|
| Memory | 8GB 128-bit LPDDR5 102.4GB/s |
16GB 128-bit LPDDR5 102.4GB/s |
| Storage | —— (Supports extemal NVMe) |
|
| CSl Camera | Up to 4 cameras (8 via virtual channels***) 8 lanes MIPl CS1-2 D-PHY 2.1 (up to 20Gbps) |
2x MIPI CSI-2 22-pin Camera Connectors |
| PCIE* | 1 x4 + 3 x1 (PCle Gen4, Root Port & Endpoint) |
|
| Networking* | 1x GbE | |
| Power | 10W-15W-25W-40W | 10W-15W-25W-40W |

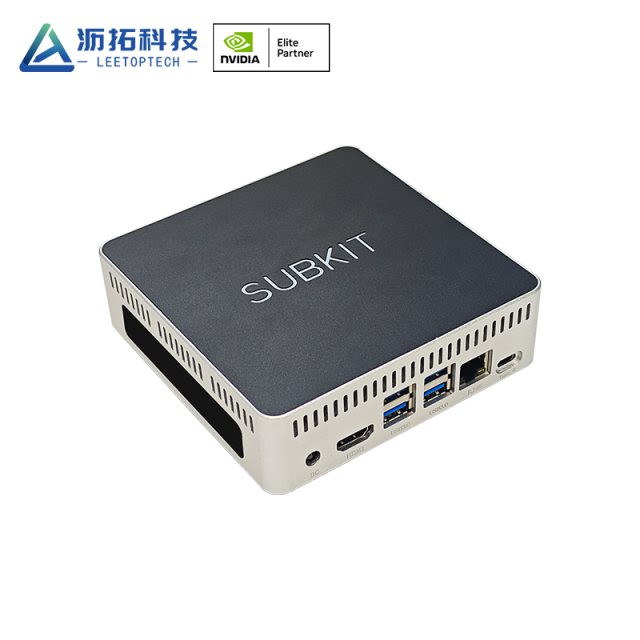

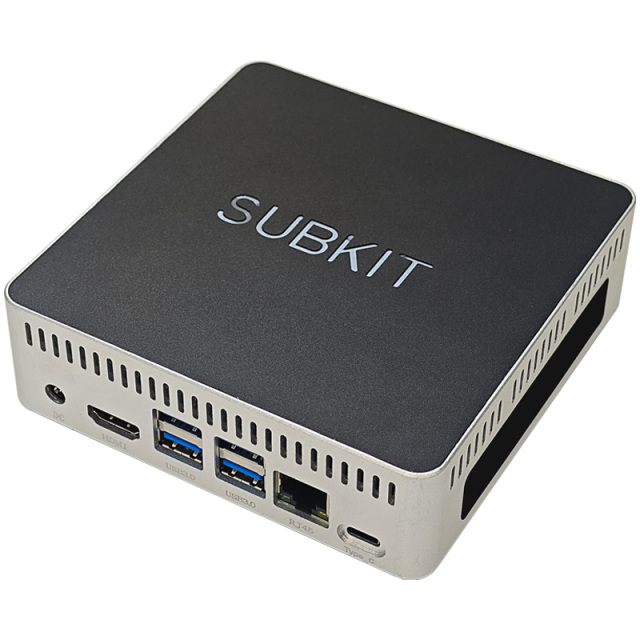

| Project | Specification |
| Module Compatibility | Jetson Orin Nano /Orin NX |
| Display | 1x HDMI |
| Ethernet | 1x Gigabit Ethernet (10M/100M/1000M) |
| USB | 4x USB 3.0 Type A(Integrated USB2.0) 1x USB2.0+3.0 TYPE C |
| Camera | 2x CSI 2lane |
| Multifunctional port | 2xI2C; 6xGPI0;2xSPI; 1xI2S; 1xUART |
| Button Header Pinout | 1xSYS_RST; 1XRECOVERY; 1xPOWER; |
| RTC BATTARY connector | 1x RTC |
| CAN BUS | 1xCAN; |
| DC | Power interface |
| Input Voltage | +9V ~ 20V DC Input @7A |
| Load capacity | Above 60W |
| Dimensions (LxWxH ) | 122x91x43.9(mm) |
| Operating Temperature | -25℃-65℃ |
| Storage Temperature Humidity |
-25℃-65℃ 10% -90% Non condensation environment |
